D30 F100/F125 Raytools Compound focus collimation

Recommend for you

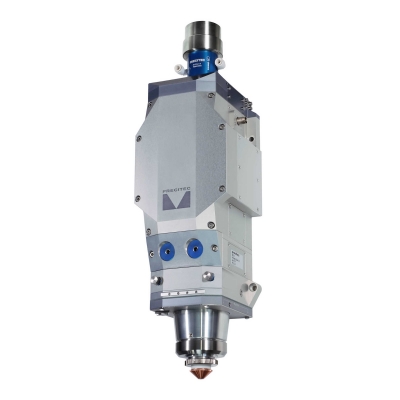

ProCutter 2.0 Zoom

ProCutter 2.0 Zoom

The ProCutter 2.0 Zoom provides maximum and flexible performance in the smallest space possible. With a maximum power of 12 kW, it can generate ideal beams of light for all materials of all thicknesses, making it the ultimate all-round tool for your sheet metal cutting.

0.00
0.00


The ProCutter 2.0 Zoom provides maximum and flexible performance in the smallest space possible. With a maximum power of 12 kW, it can generate ideal beams of light for all materials of all thicknesses, making it the ultimate all-round tool for your sheet metal cutting.

Automatic focusing plane cutting head

Power level: 1500W

Collimator focal length: 100mm

Focusing lens focal length: 125mm, 150mm

Auto focus:

-Range:+8~-9mm

-Acceleration: ≤ 10m/s ²

-Speed: ≤ 6m/min

-Accuracy: ≤ 50 μ m

Nozzle hole specifications: single layer, double layer, non-standard

Fiber optic interface: QBH, QD

Nozzle aperture: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm

Focused aperture: 26mm

Protective lenses:

-Collimator protection mirror: φ 24.9mm*1.5mm

-Focusing protective goggles: φ 27.9mm*4.1mm

Auxiliary gas pressure: ≤ 25bar

Weight:~3kg


图片关键词


该工程图对应配置为：QBH-100-125-28YYL-BMH109001A
